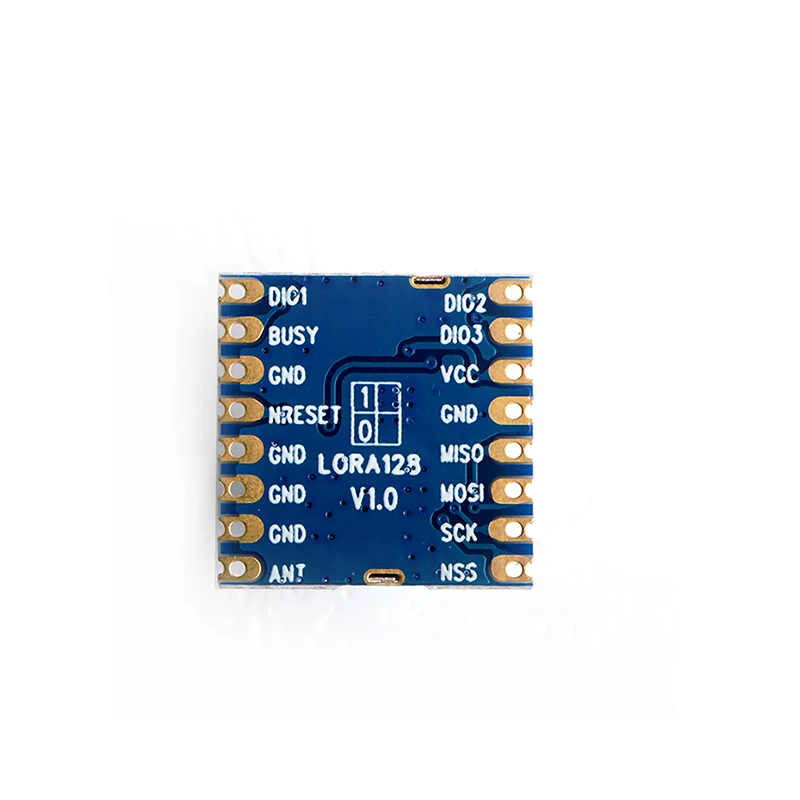

2pcs/lot LoRa1280 Long range LoRa 2.4G module SX1280 chip 2.4GHz RF wireless transceiver

Cooltech Store

Precio habitual $24.14

Los gastos de envío se calculan en la pantalla de pagos.

Lora1280/1281 is a remote 2.4ghz band high performance iot wireless transceiver module integrated with Semtech's high performance rf chip sx1280/1281. The module has very low receiving sensitivity and low power consumption performance and is compatible with bluetooth protocol. The LoRa1280 and LoRa1281 modules are more integrated with the function of "time of flight", which can easily realize the application of functional products such as rangefinder

rola1280&1281-04 rola1280&1281-05

Features

```
Frequency Range：2400-2500MHz
```
```
Maximum power output: 12.5dBm
```
```
Data rate:  @LoRa=0.476-202Kbps
```
```
@FLRC=260-1300 Kbps
```
```
@FSK=125-2000 Kbps
```
```
Sensitivity up to: -132dBm@loRa
```
```
LoRa\FSK\FLRC Modulation
```
```
Packet mode FIFO: 256 Bytes
```
```
Operating voltage range:1.8-3.7 V
```

Operating temperature range: -40 ~ +85 °C

Application

Wireless remote control	Toy control
Remote meter reading	Tire Pressure Monitoring
Smart Home	health monitoring
Personal data records	Tag reader
